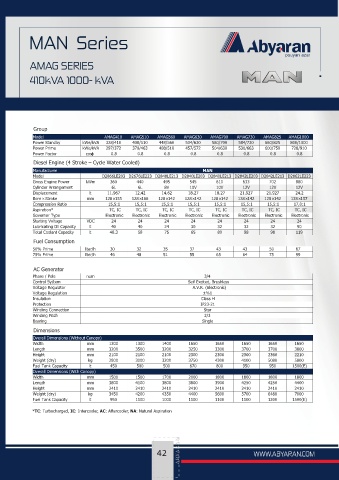

Page 45 - Abyaran_Catalog

MAN Series

pouyan azar
AMAG SERIES

410kVA 1000- kVA

Group
Model AMAG410 AMAG510 AMAG560 AMAG630 AMAG700 AMAG730 AMAG825 AMAG1000
Power Standby kWe/kVA 328/410 408/510 448/560 504/630 560/700 584/730 660/825 800/1000
Power Prime kWe/kVA 297/372 370/463 408/510 457/572 504/630 530/663 600/750 728/910
Power Factor cosɸ 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8
Diesel Engine (4 Stroke – Cycle Water Cooled)
Manufacturer MAN
Model D2866LE203 D2676LE223 D2848LE213 D2840LE203 D2840LE213 D2842LE203 D2842LE213 D2862LE223
Gross Engine Power kWm 360 440 495 545 610 633 702 880
Cylinder Arrangement 6L 6L 8V 10V 10V 12V 12V 12V
Displacement lt 11.967 12.42 14.62 18.27 18.27 21.927 21.927 24.2
Bore × Stroke mm 128×155 128×166 128×142 128×142 128×142 128×142 128×142 128×157
Compression Ratio 15,5:1 15,5:1 15,5:1 15,5:1 15,5:1 15,5:1 15,5:1 17,0:1
Aspiration* TC, IC TC, IC TC, IC TC, IC TC, IC TC, IC TC, IC TC, IC
Governor Type Electronic Electronic Electronic Electronic Electronic Electronic Electronic Electronic
Starting Voltage VDC 24 24 24 24 24 24 24 24
Lubricating Oil Capacity lt 40 40 24 30 32 32 32 90
Total Coolant Capacity lt 48.3 58 75 65 80 98 98 119
Fuel Consumption
50% Prime liter/h 30 32 35 37 43 43 50 67
75% Prime liter/h 46 48 51 55 65 64 75 99

AC Generator
Phase / Pole num 3/4
Control System Self Excited, Brushless
Voltage Regulator A.V.R. (Electronic)
Voltage Regulation ±%1
Insulation Class H
Protection IP23-21
Winding Connection Star
Winding Pitch 2/3
Bearing Single
Dimensions
Overall Dimensions (Without Canopy)
Width mm 1300 1300 1400 1650 1650 1650 1650 1650
Length mm 3200 3500 3200 3250 3300 3700 3700 3800
Height mm 2100 2100 2100 2300 2300 2300 2360 2210
Weight (dry) kg 2800 3000 3200 3750 4300 4100 5080 5800
Fuel Tank Capacity lt 450 500 500 670 800 950 950 1500(E)
Overall Dimensions (With Canopy)
Width mm 1500 1500 1700 2000 1800 1800 1800 1800
Length mm 3800 4100 3800 3800 3900 4250 4250 4400
Height mm 2410 2410 2410 2410 2410 2410 2410 2410
Weight (dry) kg 3450 4200 4350 4400 5600 5700 6480 7000
Fuel Tank Capacity lt 950 1100 1000 1100 1100 1100 1200 1500(E)

*TC: Turbocharged, IC: Intercooler, AC: Aftercooler, NA: Natural Aspiration
