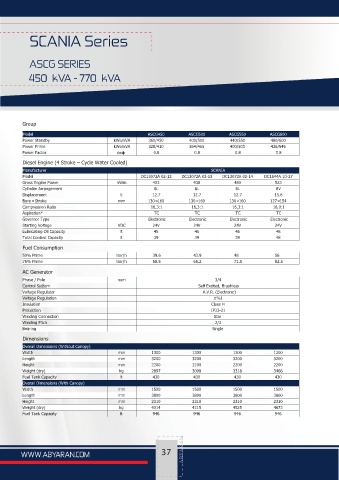

SCANIA Series

ASCG SERIES

450 kVA - 770 kVA

Group

Model ASCG450 ASCG500 ASCG550 ASCG600
Power Standby kWe/kVA 360/450 400/500 440/550 480/600
Power Prime kWe/kVA 328/410 364/455 400/500 436/545
Power Factor cosɸ 0.8 0.8 0.8 0.8
Diesel Engine (4 Stroke – Cycle Water Cooled)
Manufacturer SCANIA
Model DC13072A 02-12 DC13072A 02-13 DC13072A 02-14 DC1644A 10-27
Gross Engine Power kWm 403 438 480 523
Cylinder Arrangement 6L 6L 6L 8V
Displacement lt 12.7 12.7 12.7 15.6
Bore × Stroke mm 130×160 130×160 130×160 127×154
Compression Ratio 16,3:1 16,3:1 16,3:1 16,0:1
Aspiration* TC TC TC TC
Governor Type Electronic Electronic Electronic Electronic
Starting Voltage VDC 24V 24V 24V 24V
Lubricating Oil Capacity lt 45 45 45 48
Total Coolant Capacity lt 39 39 39 48
Fuel Consumption
50% Prime liter/h 39.6 43.9 48 56
75% Prime liter/h 58.5 65.2 71.5 82.5
AC Generator
Phase / Pole num 3/4
Control System Self Excited, Brushless
Voltage Regulator A.V.R. (Electronic)
Voltage Regulation ±%1
Insulation Class H
Protection IP23-21
Winding Connection Star
Winding Pitch 2/3
Bearing Single

Dimensions
Overall Dimensions (Without Canopy)
Width mm 1300 1300 1300 1300
Length mm 3200 3200 3200 3200
Height mm 2200 2200 2200 2200
Weight (dry) kg 2897 3008 3318 3466
Fuel Tank Capacity lt 430 430 430 430
Overall Dimensions (With Canopy)
Width mm 1500 1500 1500 1500
Length mm 3800 3800 3800 3800
Height mm 2310 2310 2310 2310
Weight (dry) kg 4014 4215 4525 4673
Fuel Tank Capacity lt 946 946 946 946
