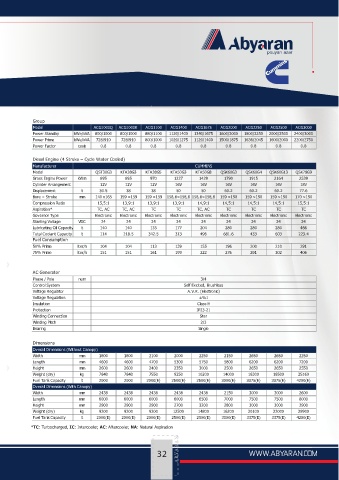

Page 35 - Abyaran_Catalog

pouyan azar

Group
Model ACG1000Q ACG1000K ACG1100 ACG1400 ACG1675 ACG2000 ACG2250 ACG2500 ACG3000
Power Standby kWe/kVA 800/1000 800/1000 880/1100 1120/1400 1340/1675 1600/2000 1800/2250 2000/2500 2400/3000
Power Prime kWe/kVA 728/910 728/910 800/1000 1020/1275 1120/1400 1500/1875 1636/2045 1600/2000 2200/2750
Power Factor cosɸ 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8

Diesel Engine (4 Stroke – Cycle Water Cooled)
Manufacturer CUMMINS
Model QST30G3 KTA38G3 KTA38G5 KTA50G3 KTA50G8 QSK60G3 QSK60G4 QSK60G13 QSK78G9
Gross Engine Power kWm 895 895 970 1227 1429 1790 1915 2164 2539
Cylinder Arrangement 12V 12V 12V 16V 16V 16V 16V 16V 18V
Displacement lt 30.5 38 38 50 50 60.2 60.2 60.2 77.6
Bore × Stroke mm 140 x165 159 ×159 159 ×159 158,8×158,8 158,8×158,8 159 ×190 159 ×190 159 ×190 170 ×190
Compression Ratio 15,5:1 13,9:1 13,9:1 13,9:1 14,9:1 14,5:1 14,5:1 14,5:1 15,5:1
Aspiration* TC, AC TC, AC TC TC TC, AC TC TC TC TC
Governor Type Electronic Electronic Electronic Electronic Electronic Electronic Electronic Electronic Electronic
Starting Voltage VDC 24 24 24 24 24 24 24 24 24
Lubricating Oil Capacity lt 140 140 135 177 204 280 280 280 466
Total Coolant Capacity lt 114 218.5 342.5 313 496 681.6 433 603 223.4
Fuel Consumption
50% Prime liter/h 104 104 113 139 155 196 200 210 291
75% Prime liter/h 151 151 161 199 222 276 291 302 406

AC Generator
Phase / Pole num 3/4
Control System Self Excited, Brushless
Voltage Regulator A.V.R. (Electronic)
Voltage Regulation ±%1
Insulation Class H
Protection IP23-21
Winding Connection Star
Winding Pitch 2/3
Bearing Single

Dimensions
Overall Dimensions (Without Canopy)
Width mm 1800 1800 2100 2000 2250 2150 2650 2650 2250
Length mm 4600 4600 4700 5300 5750 5800 6200 6200 7200
Height mm 2600 2600 2400 2350 3000 2500 2650 2650 2550
Weight (dry) kg 7640 7640 7550 9250 10200 14000 16300 16500 25160
Fuel Tank Capacity lt 2000 2000 2000(E) 2500(E) 2500(E) 3000(E) 3375(E) 3375(E) 4200(E)
Overall Dimensions (With Canopy)
Width mm 2438 2438 2438 2438 2438 2150 3000 3000 2600
Length mm 6000 6000 6000 6000 6500 7000 7500 7500 8000
Height mm 2900 2900 2900 2700 3200 2800 3000 3000 2900
Weight (dry) kg 9200 9200 9200 12500 14800 16200 20100 22000 28900
Fuel Tank Capacity lt 2000(E) 2000(E) 2000(E) 2500(E) 2500(E) 3000(E) 3375(E) 3375(E) 4200(E)
*TC: Turbocharged, IC: Intercooler, AC: Aftercooler, NA: Natural Aspiration
