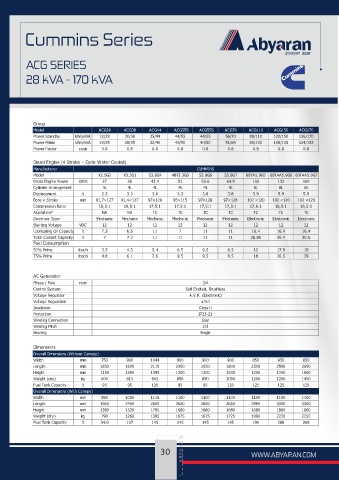

Page 33 - Abyaran_Catalog

Cummins Series

pouyan azar
ACG SERIES

28 kVA - 170 kVA

Group
Model ACG28 ACG38 ACG44 ACG55B ACG55S ACG70 ACG110 ACG150 ACG170
Model kWe/kVA 22/28 30/38 35/44 44/55 44/55 56/70 88/110 120/150 136/170
Power Standby
Power Prime kWe/kVA 20/25 28/35 32/40 40/50 40/50 51/64 80/100 108/135 124/155
Power Factor cosɸ 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8

Diesel Engine (4 Stroke – Cycle Water Cooled)
Manufacturer
Manufacturer CUMMINS
Model X2.5G2 X3.3G1 S3.8G4 4BT3.3G3 S3.8G6 S3.8G7 6BTA5.9G5 6BTAA5.9G6 6BTAA5.9G7
Gross Engine Power kWm 27 36 43.4 51 53.6 64.9 102 132 160
Cylinder Arrangement 3L 4L 4L 4L 4L 4L 6L 6L 6L
Displacement lt 2.5 3.3 3.8 3.3 3.8 3.8 5.9 5.9 5.9
Bore × Stroke mm 91,7×127 91,4×127 97×128 95×115 97×128 97×128 102 ×120 102 ×120 102 ×120
Compression Ratio 18,5:1 18,5:1 17,5:1 17,5:1 17,5:1 17,5:1 17,6:1 16,5:1 16,5:1
Aspiration* NA NA TC TC TC TC TC TC TC
Governor Type Mechanic Mechanic Mechanic Mechanic Mechanic Mechanic Electronic Electronic Electronic
Starting Voltage VDC 12 12 12 12 12 12 12 12 12
Lubricating Oil Capacity lt 7.3 6.5 11 7 11 11 16.4 16.4 16.4
Total Coolant Capacity lt 7 7.2 11 11 11 11 28.85 30.4 30.5
Fuel Consumption
50% Prime liter/h 3.5 4.3 5.4 6.5 6.5 6.5 12 17.9 19
75% Prime liter/h 4.8 6.1 7.6 9.5 9.5 9.5 18 26.5 29

AC Generator
Phase / Pole num 3/4
Control System Self Excited, Brushless
Voltage Regulator A.V.R. (Electronic)
Voltage Regulation ±%1
Insulation Class H
Protection IP23-21
Winding Connection Star
Winding Pitch 2/3
Bearing Single

Dimensions
Overall Dimensions (Without Canopy)
Overall Dimensions (Without Canopy)
Width mm 750 900 1044 900 900 900 850 850 850
Length mm 1850 1600 2115 2050 2050 1800 2500 2500 2650
Height mm 1150 1280 1395 1300 1300 1530 1200 1200 1600
Weight (dry) kg 800 815 945 890 890 1090 1200 1200 1450
Fuel Tank Capacity lt 95 95 120 95 95 120 125 125 125
Overall Dimensions (With Canopy)
Overall Dimensions (With Canopy)
Width mm 950 1000 1115 1100 1100 1100 1100 1100 1100
Length mm 1960 2400 2600 2650 2650 2650 2850 3300 3300
Height mm 1380 1530 1795 1680 1680 1680 1680 1880 1880
Weight (dry) kg 790 1260 1395 1675 1675 1725 1990 2220 2250
Fuel Tank Capacity lt 54.6 107 145 145 145 145 190 268 268
