Group

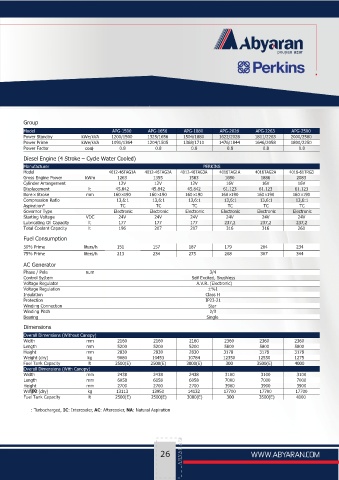

Model APG-1500 APG-1656 APG-1880 APG-2028 APG-2263 APG-2500
Power Standby kWe/kVA 1200/1500 1325/1656 1504/1880 1622/2028 1811/2263 2000/2500
Power Prime kWe/kVA 1091/1364 1204/1505 1368/1710 1476/1844 1646/2058 1800/2250
Power Factor cosɸ 0.8 0.8 0.8 0.8 0.8 0.8
Diesel Engine (4 Stroke – Cycle Water Cooled)
Manufacturer PERKINS
Model 4012-46TAG1A 4012-46TAG2A 4012-46TAG3A 4016TAG1A 4016TAG2A 4016-61TRG3
Gross Engine Power kWm 1263 1395 1583 1690 1886 2083
Cylinder Arrangement 12V 12V 12V 16V 16V 16V
Displacement lt 45.842 45.842 45.842 61.123 61.123 61.123
Bore × Stroke mm 160×190 160×190 160×190 160×190 160×190 160×190
Compression Ratio 13,6:1 13,6:1 13,6:1 13,6:1 13,6:1 13,6:1
Aspiration* TC TC TC TC TC TC
Governor Type Electronic Electronic Electronic Electronic Electronic Electronic
Starting Voltage VDC 24V 24V 24V 24V 24V 24V
Lubricating Oil Capacity lt 177 177 177 237,2 237,2 237,2
Total Coolant Capacity lt 196 207 207 316 316 260

Fuel Consumption
50% Prime liters/h 151 157 187 179 204 234
75% Prime liters/h 213 234 275 268 307 344
AC Generator
Phase / Pole num 3/4
Control System Self Excited, Brushless
Voltage Regulator A.V.R. (Electronic)
Voltage Regulation ±%1
Insulation Class H
Protection IP23-21
Winding Connection Star
Winding Pitch 2/3
Bearing Single
Dimensions
Overall Dimensions (Without Canopy)
Width mm 2160 2160 2160 2360 2360 2360
Length mm 5200 5200 5200 5800 5800 5800
Height mm 2830 2830 2830 3178 3178 3178
Weight (dry) kg 9080 10453 10784 12350 12550 1275
Fuel Tank Capacity lt
Overall Dimensions (With Canopy)
Width mm 2438 2438 2438 3100 3100 3100
Length mm 6058 6058 6058 7000 7000 7000
Height mm 2700 2700 2700 3900 3900 3900
*TC
Weight (dry) kg 13113 13950 14132 17700 17700 17700
Fuel Tank Capacity lt 4000
: Turbocharged, IC: Intercooler, AC: Aftercooler, NA: Natural Aspiration
