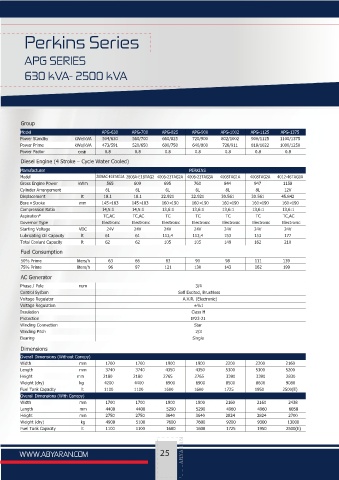

Perkins Series



          APG SERIES

          630 kVA- 2500 kVA









        Group
        Model                        APG-630   APG-700    APG-825   APG-900    APG-1002  APG-1125   APG-1375
        Power Standby      kWe/kVA   504/630   560/700    660/825    720/900   802/1002  900/1125  1100/1375
        Power Prime        kWe/kVA   473/591    520/650   600/750    640/800   728/911   818/1022  1000/1250
        Power Factor        cosɸ      0.8       0.8        0.8        0.8       0.8        0.8       0.8
        Diesel Engine (4 Stroke – Cycle Water Cooled)
        Manufacturer                                               PERKINS
        Model                      2806AC-E18TAG1A     2806A-E18TAG2 4006-23TAG2A 4006-23TAG3A  4008TAG1A  4008TAG2A  4012-46TAG0A
        Gross Engine Power   kWm      565       609        695       760        844       947       1158
        Cylinder Arrangement          6L         6L        6L         6L        8L         8L        12V
        Displacement          lt     18.1       18.1      22.921    22.921     30.561    30.561     45.842
        Bore × Stroke        mm      145×183   145×183    160×190   160×190    160×190   160×190    160×190
        Compression Ratio            14,5:1    14,5:1     13,6:1    13,6:1     13,6:1     13,6:1    13,6:1
        Aspiration*                  TC,AC      TC,AC      TC         TC        TC         TC       TC,AC
        Governor Type                Electronic  Electronic  Electronic  Electronic  Electronic  Electronic  Electronic
        Starting Voltage     VDC      24V       24V        24V       24V        24V       24V        24V
        Lubricating Oil Capacity  lt  61         61       113,4      113,4      153       153        177
        Total Coolant Capacity  lt    62         62        105       105        149       162        210
        Fuel Consumption
        50% Prime           liters/h   63        66        83         90        98         111                139
        75% Prime           liters/h   96        97        121       130        143        162      199
        AC Generator
        Phase / Pole         num                                      3/4
        Control System                                           Self Excited, Brushless
        Voltage Regulator                                        A.V.R. (Electronic)
        Voltage Regulation                                           ±%1
        Insulation                                                  Class H
        Protection                                                  IP23-21
        Winding Connection                                           Star
        Winding Pitch                                                 2/3
        Bearing                                                      Single
        Dimensions
        Overall Dimensions (Without Canopy)
        Width                mm       1700       1700      1900       1900      2200       2200      2160
        Length               mm       3740       3740      4350       4350      5300       5300      5200
        Height              mm       2180       2180      2765       2765       3390       3390       2830
        Weight (dry)         kg       4200      4400       6900       6900      8500       8600      9080
        Fuel Tank Capacity    lt      1100      1100       1600      1600       1725                1950              2500(E)
        Overall Dimensions (With Canopy)
        Width                mm       1700       1700      1900       1900      2160       2160       2438
        Length
        Height               mm       2750       2750      3640       3640      2824       2824       2700
        Weight (dry)
        Fuel Tank Capacity    lt      1100       1100
