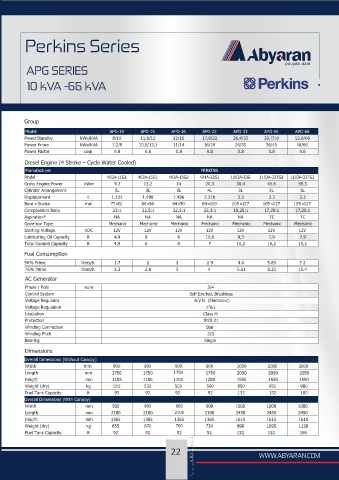

Perkins Series

APG SERIES pouyan azar

10 kVA -66 kVA

Group
Model APG-10 APG-15 APG-16 APG-22 APG-33 APG-50 APG-66
Power Standby kWe/kVA 8/10 11,6/15 12/15 17,8/22 26,4/33 39,7/50 52,8/66
Power Prime kWe/kVA 7,2/9 10,5/13,1 11/14 16/20 24/30 36/45 48/60
Power Factor cosɸ 0.8 0.8 0.8 0.8 0.8 0.8 0.8

Diesel Engine (4 Stroke – Cycle Water Cooled)
Manufacturer PERKINS
Model 403A-11G1 403A-15G1 403A-15G2 404A-22G1 1103A-33G 1103A-33TG1 1103A-33TG2
Gross Engine Power kWm 9.2 13.2 14 20.3 30.4 45.6 59.3
Cylinder Arrangement 3L 3L 3L 4L 3L 3L 3L
Displacement lt 1.131 1.496 1.496 2.216 3.3 3.3 3.3
Bore × Stroke mm 77×81 84×90 84×90 84×100 105×127 105×127 105×127
Compression Ratio 23:1 22,5:1 22,5:1 23,3:1 19,25:1 17,25:1 17,25:1
Aspiration* NA NA NA NA NA TC TC
Governor Type Mechanic Mechanic Mechanic Mechanic Mechanic Mechanic Mechanic
Starting Voltage VDC 12V 12V 12V 12V 12V 12V 12V
Lubricating Oil Capacity lt 4,9 6 6 10,6 8,3 7,9 7,9
Total Coolant Capacity lt 4,9 6 6 7 10,2 10,2 10,2
Fuel Consumption
50% Prime liters/h 1.7 2 2 2.9 4.6 5.83 7.2
75% Prime liters/h 2.3 2.8 3 4 5.61 8.23 10.4
AC Generator
Phase / Pole num 3/4
Control System Self Excited, Brushless
Voltage Regulator A.V.R. (Electronic)
Voltage Regulation ±%1
Insulation Class H
Protection IP23-21
Winding Connection Star
Winding Pitch 2/3
Bearing Single
Dimensions
Overall Dimensions (Without Canopy)
Width mm 900 900 900 900 1000 1000 1000
Length 1750
Height 1200
Weight (dry) kg 515 530 550 590 850 955 980
Fuel Tank Capacity lt 92 92 92 92 132 132 180
Overall Dimensions (With Canopy)
Width 900 900
Length 2100
Height 1365
Weight (dry) kg 655 670 700 730
Fuel Tank Capacity lt 92 92 92 92 132 132 180
