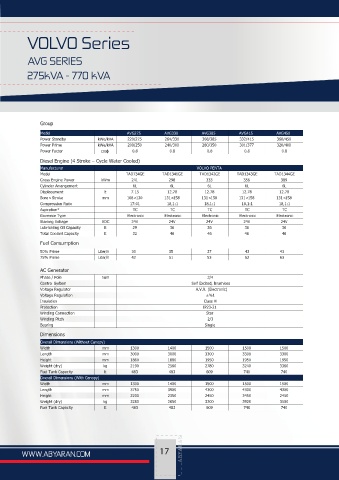

VOLVO Series

AVG SERIES

275kVA - 770 kVA

Group

Model AVG275 AVG330 AVG385 AVG415 AVG450
Power Standby kWe/kVA 220/275 264/330 308/385 332/415 360/450
Power Prime kWe/kVA 200/250 240/300 280/350 301/377 320/400
Power Factor cos 0.8 0.8 0.8 0.8 0.8
Diesel Engine (4 Stroke – Cycle Water Cooled)
Manufacturer VOLVO PENTA
Model TAD734GE TAD1341GE TAD1342GE TAD1343GE TAD1344GE
Gross Engine Power kWm 241 298 333 356 389
Cylinder Arrangement 6L 6L 6L 6L 6L
Displacement lt 7.15 12.78 12.78 12.78 12.78
Bore × Stroke mm 108×130 131×158 131×158 131×158 131×158
Compression Ratio 17:01 18,1:1 18,1:1 18,1:1 18,1:1
Aspiration* TC TC TC TC TC
Governor Type Electronic Electronic Electronic Electronic Electronic
Starting Voltage VDC 24V 24V 24V 24V 24V
Lubricating Oil Capacity lt 29 36 36 36 36
Total Coolant Capacity lt 32 46 46 46 46
Fuel Consumption
50% Prime Liter/h 30 35 37 43 43
75% Prime Liter/h 42 51 53 62 63
AC Generator
Phase / Pole num 3/4
st Self Excited, Brushless
Voltage Regulator A.V.R. (Electronic)
Voltage Regulation ±%1
Insulation Class H
Protection IP23-21
Winding Connection Star
Winding Pitch 2/3
Bearing Single
Dimensions
Overall Dimensions (Without Canopy)
Width mm 1300 1400 1500 1500 1500
Length mm 3000 3000 3300 3300 3300
Height mm 1860 1880 1950 1950 1950
Weight (dry) kg 2190 2560 2780 3240 3360
Fuel Tank Capacity lt 483 483 609 740 740
Overall Dimensions (With Canopy)
Width mm 1300 1400 1500 1500 1500
Length mm 3750 3900 4300 4300 4300
Height mm 2200 2350 2450 2450 2450
Weight (dry) kg 2280 2650 3200 3920 3500
Fuel Tank Capacity lt 483 483 609 740 740
