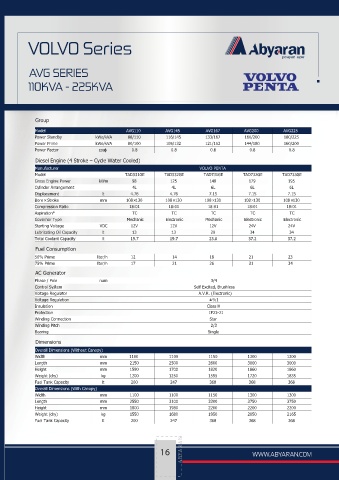

VOLVO Series

pouyan azar
AVG SERIES

110KVA - 225KVA

Group
Model AVG110 AVG145 AVG167 AVG200 AVG225
Power Standby kWe/kVA 88/110 116/145 133/167 160/200 180/225
Power Prime kWe/kVA 80/100 105/132 121/152 144/180 160/200
Power Factor cosɸ 0.8 0.8 0.8 0.8 0.8
Diesel Engine (4 Stroke – Cycle Water Cooled)
Manufacturer VOLVO PENTA
Model TAD531GE TAD532GE TAD731GE TAD732GE TAD733GE
Gross Engine Power kWm 98 125 148 179 195
Cylinder Arrangement 4L 4L 6L 6L 6L
Displacement lt 4.76 4.76 7.15 7.15 7.15
Bore × Stroke mm 108×130 108×130 108×130 108×130 108×130
Compression Ratio 18:01 18:01 18:01 18:01 18:01
Aspiration* TC TC TC TC TC
Governor Type Mechanic Electronic Mechanic Electronic Electronic
Starting Voltage VDC 12V 12V 12V 24V 24V
Lubricating Oil Capacity lt 13 13 20 34 34
Total Coolant Capacity lt 19.7 19.7 23.8 37.2 37.2
Fuel Consumption
50% Prime liter/h 12 14 18 21 23
75% Prime liter/h 17 21 26 31 34
AC Generator
Phase / Pole num 3/4
Control System Self Excited, Brushless
Voltage Regulator A.V.R. (Electronic)
Voltage Regulation ±%1
Insulation Class H
Protection IP23-21
Winding Connection Star
Winding Pitch 2/3
Bearing Single
Dimensions
Overall Dimensions (Without Canopy)
Width mm 1100 1100 1150 1300 1300
Length mm 2150 2500 2800 3000 3000
Height mm 1590 1700 1820 1860 1860
Weight (dry) kg 1200 1250 1595 1720 1835
Fuel Tank Capacity lt 200 247 368 368 368
Overall Dimensions (With Canopy)
Width mm 1100 1100 1150 1300 1300
Length mm 2550 3100 3300 3750 3750
Height mm 1800 1980 2200 2200 2200
Weight (dry) kg 1550 1680 1950 2050 2165
Fuel Tank Capacity lt 200 247 368 368 368
