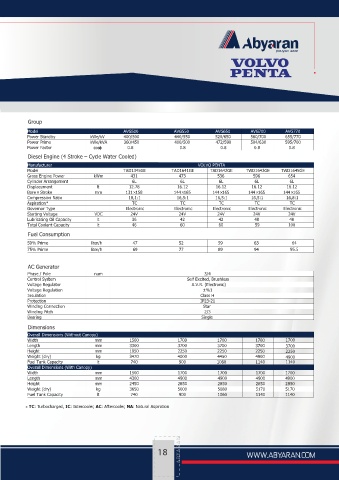

Page 21 - Abyaran_Catalog

pouyan azar

Group
Model AVG500 AVG550 AVG650 AVG700 AVG770
Power Standby kWe/kV 400/500 440/550 520/650 560/700 655/770
Power Prime kWe/kVA 360/450 400/500 472/590 504/630 595/700
Power Factor cosɸ 0.8 0.8 0.8 0.8 0.8
Diesel Engine (4 Stroke – Cycle Water Cooled)
Manufacturer VOLVO PENTA
Model TAD1345GE TAD1641GE TAD1642GE TWD1643GE TWD1645GE
Gross Engine Power kWm 431 473 536 596 654
Cylinder Arrangement 6L 6L 6L 6L 6L
Displacement lt 12.78 16.12 16.12 16.12 16.12
Bore × Stroke mm 131×158 144×165 144×165 144×165 144×165
Compression Ratio 18,1:1 16,5:1 16,5:1 16,5:1 16,8:1
Aspiration* TC TC TC TC TC
Governor Type Electronic Electronic Electronic Electronic Electronic
Starting Voltage VDC 24V 24V 24V 24V 24V
Lubricating Oil Capacity lt 36 42 42 48 48
Total Coolant Capacity lt 46 60 60 59 100
Fuel Consumption
50% Prime liter/h 47 52 59 63 64
75% Prime liter/h 69 77 89 94 95.5

AC Generator
Phase / Pole num 3/4
Control System Self Excited, Brushless
Voltage Regulator A.V.R. (Electronic)
Voltage Regulation ±%1
Insulation Class H
Protection IP23-21
Winding Connection Star
Winding Pitch 2/3
Bearing Single
Dimensions
Overall Dimensions (Without Canopy)
Width mm 1500 1700 1700 1700 1700
Length mm 3300 3700 3700 3700 3700
Height mm 1950 2250 2250 2250 2250
Weight (dry) kg 3470 4000 4450 4900 4900
Fuel Tank Capacity lt 740 900 1060 1140 1140
Overall Dimensions (With Canopy)
Width mm 1500 1700 1700 1700 1700
Length mm 4300 4900 4900 4900 4900
Height mm 2450 2850 2850 2850 2850
Weight (dry) kg 3650 5000 5080 5170 5170
Fuel Tank Capacity lt 740 900 1060 1140 1140

* TC: Turbocharged, IC: Intercooler, AC: Aftercooler, NA: Natural Aspiration
