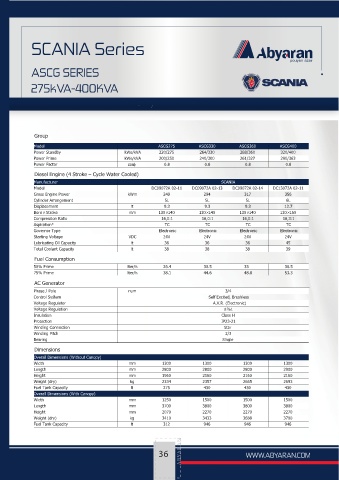

SCANIA Series

pouyan azar
ASCG SERIES

275kVA-400KVA

Group
Model ASCG275 ASCG330 ASCG360 ASCG400
Power Standby kWe/kVA 220/275 264/330 288/360 320/400
Power Prime kWe/kVA 200/250 240/300 261/327 290/363
Power Factor cosɸ 0.8 0.8 0.8 0.8

Diesel Engine (4 Stroke – Cycle Water Cooled)
Manufacturer SCANIA
Model DC09072A 02-11 DC09072A 02-13 DC09072A 02-14 DC13072A 02-11
Gross Engine Power kWm 249 294 317 356
Cylinder Arrangement 5L 5L 5L 6L
Displacement lt 9.3 9.3 9.3 12.7
Bore × Stroke mm 130×140 130×140 130×140 130×160
Compression Ratio 16,0:1 16,0:1 16,0:1 16,3:1
Aspiration* TC TC TC TC
Governor Type Electronic Electronic Electronic Electronic
Starting Voltage VDC 24V 24V 24V 24V
Lubricating Oil Capacity lt 36 36 36 45
Total Coolant Capacity lt 38 38 38 39
Fuel Consumption
50% Prime liter/h 26.4 30.5 33 36.5
75% Prime liter/h 38.1 44.6 48.8 53.3
AC Generator
Phase / Pole num 3/4
Control System Self Excited, Brushless
Voltage Regulator A.V.R. (Electronic)
Voltage Regulation ±%1
Insulation Class H
Protection IP23-21
Winding Connection Star
Winding Pitch 2/3
Bearing Single
Dimensions
Overall Dimensions (Without Canopy)
Width mm 1300 1300 1300 1300
Length mm 2800 2800 2800 2900
Height mm 1960 2160 2160 2160
Weight (dry) kg 2334 2357 2665 2693
Fuel Tank Capacity lt 275 430 430 430
Overall Dimensions (With Canopy)
Width mm 1250 1500 1500 1500
Length mm 3700 3800 3800 3800
Height mm 2070 2270 2270 2270
Weight (dry) kg 3410 3433 3688 3700
Fuel Tank Capacity lt 312 946 946 946
