pouyan azar

Group

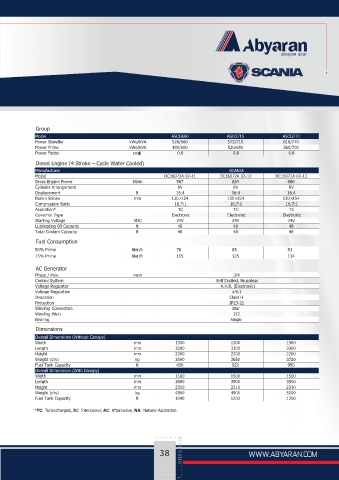

Model ASCG660 ASCG715 ASCG770
Power Standby kWe/kVA 528/660 572/715 616/770
Power Prime kWe/kVA 480/600 520/650 560/700
Power Factor cosɸ 0.8 0.8 0.8
Diesel Engine (4 Stroke – Cycle Water Cooled)
Manufacturer SCANIA
Model DC16072A 02-11 DC16072A 02-12 DC16072A 02-13
Gross Engine Power kWm 587 634 680
Cylinder Arrangement 8V 8V 8V
Displacement lt 16.4 16.4 16.4
Bore × Stroke mm 130×154 130×154 130×154
Compression Ratio 16,7:1 16,7:1 16,7:1
Aspiration* TC TC TC
Governor Type Electronic Electronic Electronic
Starting Voltage VDC 24V 24V 24V
Lubricating Oil Capacity lt 48 48 48
Total Coolant Capacity lt 48 48 48
Fuel Consumption
50% Prime liter/h 78 85 91
75% Prime liter/h 115 125 134
AC Generator
Phase / Pole num 3/4
Control System Self Excited, Brushless
Voltage Regulator A.V.R. (Electronic)
Voltage Regulation ±%1
Insulation Class H
Protection IP23-21
Winding Connection Star
Winding Pitch 2/3
Bearing Single
Dimensions
Overall Dimensions (Without Canopy)
Width mm 1300 1300 1300
Length mm 3200 3300 3300
Height mm 2200 2200 2200
Weight (dry) kg 3500 3650 3720
Fuel Tank Capacity lt 430 920 950
Overall Dimensions (With Canopy)
Width mm 1500 1500 1500
Length mm 3800 3900 3900
Height mm 2310 2310 2310
Weight (dry) kg 4800 4900 5000
Fuel Tank Capacity lt 1040 1200 1200
*TC: Turbocharged, IC: Intercooler, AC: Aftercooler, NA: Natural Aspiration
