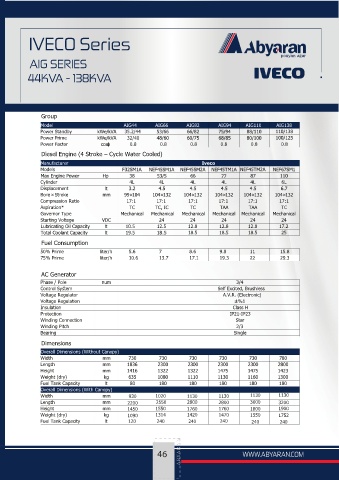

IVECO Series

pouyan azar
AIG SERIES

44KVA - 138KVA

Group
Model AIG44 AIG66 AIG82 AIG94 AIG110 AIG138
Power Standby
Power Prime
Power Factor cosɸ 0.8 0.8 0.8 0.8 0.8 0.8
Diesel Engine (4 Stroke – Cycle Water Cooled)
Manufacturer Iveco
Models
77
Cylinder 4L 4L 6L
Displacement
Bore × Stroke
Compression Ratio 17:1 17:1 17:1 17:1 17:1 17:1
Aspiration*
Governor Type
Starting Voltage VDC 24 24 24 24 24
12.5 12.8 12.8 12.8 17.2
18.5 18.5 18.5 25
Fuel Consumption
50% Prime liter/h 5.6 7 8.6 9.8 11 15.8
75% Prime liter/h 10.6 13.7 17.1 19.3 22 29.3

AC Generator
Phase / Pole num 3/4
Control System Self Excited, Brushless
Voltage Regulator A.V.R. (Electronic)
Voltage Regulation ±%1
Insulation Class H
Protection IP21-IP23
Winding Connection Star
Winding Pitch 2/3
Bearing Single
Dimensions
Overall Dimensions (Without Canopy)
Width
Length
Height
Weight (dry)
Fuel Tank Capacity
Overall Dimensions (With Canopy)
Width 930 1020 1130 1130 1130 1130
Length 2200 2550 2800 2800 3000 3200
Height 1450 1550 1760 1760 1800 1900
Weight (dry) 1090 1314 1420 1470 1550 1752
Fuel Tank Capacity 120 240 240 240 240 240

46 WWW.ABYARAN.COM
