فروش انواع الکتروموتور های سری PEM شرکت PARAGON

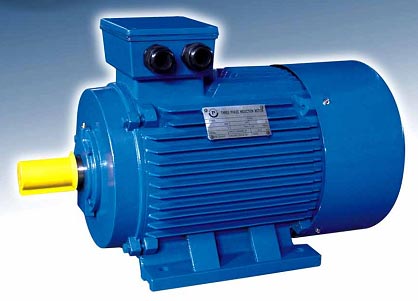

PEM Series motors are available in Squirrel Cage and Totally Enclosed Fan Cooled (TEFC) designs offering high efficiency and low noise. The motors are built to IP54 with Class F insulation but the junction box conforms to IP55. The three phase motors are available in fifteen (15) frame sizes with rated output from 0.25 HP (0.18 kW) to 425 HP (315 kW). Motors can be mounted horizontally or vertically.
PEM motors are widely used to drive various types of machinery such as blowers, pumps, compressors, machine tools, etc.
- Horsepower range: 0.25HP to 425 HP. (0.18 kW to 315 kW)
- Speed range: 700 to 3500 RPM and 600 to 2900 RPM
- Power Source: 3phase, 60 Hz, 230/460v and 50Hz, 380v
- Operating temperature: 5°F to +104°F (-15°C to 40°C).
- Enclosure type: Squirrel Cage and TEFC. .
- Protection class: IP54 (frame), IP55 (junction box).
- Insulation class: F
Website : http://www.paragonpumpco.com/pem-series.aspx
